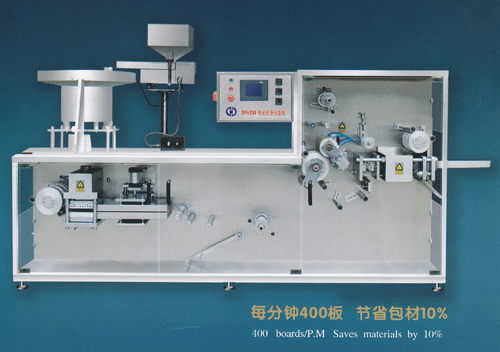

快速DPH250铝塑包装机

　　产品简介

　　该机冲裁频率20-180次分钟、172万粒/班（10粒/板：8小时/班：高产、低耗为您节省投资、降低运行（包装）成本。

　　外形美观，全部不锈钢蒙面，全封闭，符合制药行业GMP生产要求，质量可靠，运行稳定，可按不同生产规模进行选型。

　　Simple Description of Product

　　Cutting Frequency：20-180/p.m.172ten thousands pills/each

　　working shift（10pills/per board:8 hrs/each working

　　shift,high produtivity,low energy consumption,saves fund and decreases the packing cost)

　　Beautiful appearance overll,all are built and covered with stainless steal,fully sealed and conformed to the stanards of GMP pharmaceutical producition.The product is reliable in quality,smooth in operation.The shapes formation can be selected according to different prodution scales.

　　产品特点

　　板式正压吹塑成型，式热封，包装效率高，外形美观；

　　可与通用上料机、掉头上料机、圆盘振动上料机配套使用；

　　人机界面，PLC控制，无级变频调速，高速范围冲裁20-180次/分钟，（冲切）；注：根据板型长度，决定冲切次数；

　　具有长充填平台，可提高成品率，可加装传送带；

　　冷却方式：循环水或自来水（外接）。

　　冲切无废料，节省包材10%.

　　Product's Feaures:

　　Plate-model pressure blowing positively for the blister formation and hot seal as well as high efficiency in packing

　　Can be matched to be in set of filling devices such as universal filler,converting head filler,disk vibrating filler;

　　Man-computer interfacing PLC control,F-converting speed,high speed cutting ranged from 20 to 180/pm:

　　Note:Times in cutting depend on the plate's length:

　　Heating:inner hearing,aut-control:

　　Long length filling platform,highlight finishing rate,and also can be installed with conveying belt:

　　Cooling:circulating water,or otherwise using the tap water(outgoing connection):

　　Cutting without waste Left,saves the packing material up to 10%

　　主要技术参数 Main Tech-parameters

　　冲裁效率：20-180次/分 cutting efficency:20-180/pm

　　最大成型面积：200x250mm Max firmation of sizes:200x250mm

　　PVC：250x（0.15-0.45）mm pvc:250x(0.15-0.45)mm

　　PTP：250x（0.02-0.03）mm PTP:250x(0.02-.0.03)mm

　　电源及功率：7.5KW Poewr supply and power:75KW

　　整机尺寸：3000x880x1500mm Overall Sizes:3000x880x1500mm

　　包装尺寸：3500x1160x1690mm Packing sizes:3500x1160x1690mm

　　整机重量：1500Kg Overall weight:1500kg
